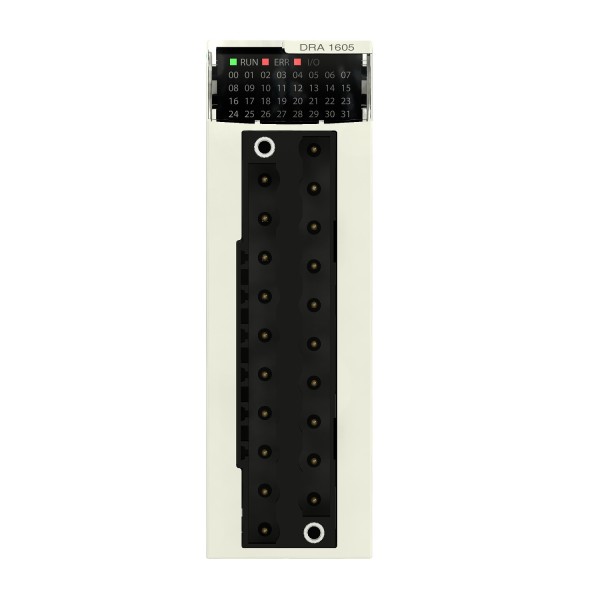

discrete output module X80 - 16O relay - 24VDC - 24..240VAC - severe environment

Ülevaaded: 0

Tootekood: BMXDRA1605H

Quick Overview

Saadavus: Tellimisel

428,80 € (ilma KM-ta)

Details

Main
range of product
Modicon X80
product or component type
Discrete output module
product specific application
For severe environments
discrete output number
16 EN/IEC 61131-2
discrete output type
Relay
discrete output voltage
24 V 19...30 V DC
240 V 19…264 V AC
Complementary
[Ith] conventional free air thermal current
2 A
insulation resistance
> 10 MOhm 500 V DC
maximum power dissipation in W
3 W
response time on output
<= 8 ms activation
<= 10 ms deactivation
typical current consumption
79 mA 3.3 V DC
MTBF reliability
1357810 H
output overload protection
Use 1 fast blow fuse per channel or group of channel
output overvoltage protection
Use discharge diode on each output DC
Use RC circuit on each output AC
Use ZNO surge limiter on each output AC
output short-circuit protection
Use 1 fast blow fuse per channel or group of channel
minimum switching current
1 mA 5 V DC
electrical durability
AC-15 100000 cycles 240 VA 200 V 0,7)
AC-15 100000 cycles 120 VA 200 V 0,35)
AC-12 100000 cycles 200 VA 100 V
AC-12 100000 cycles 80 VA 48 V
AC-12 100000 cycles 24 V
AC-15 100000 cycles 120 VA 100 V
DC-12 100000 cycles 24 W 24 V
DC-13 100000 cycles 10 W 24 V
DC-13 100000 cycles 10 W 48 V
AC-15 300000 cycles 72 VA 200 V 0,7)
AC-15 300000 cycles 36 VA 200 V 0,35)
AC-12 300000 cycles 200 VA 200 V
AC-12 300000 cycles 80 VA 100 V
AC-12 300000 cycles 50 VA 48 V
AC-15 300000 cycles 36 VA 100 V
AC-15 300000 cycles 72 VA 100 V
AC-15 300000 cycles 36 VA 48 V
AC-15 300000 cycles 72 VA 48 V
AC-15 300000 cycles 36 VA 24 V
AC-15 300000 cycles 72 VA 24 V
DC-13 300000 cycles 3 W 24 V
DC-13 300000 cycles 3 W 48 V
DC-13 7000 cycles 24 W 24 V
DC-13 7000 cycles 24 W 48 V
DC-12 50000 cycles 24 W 48 V
status LED
RUN 1 LED green)
Channel diagnostic 1 LED per channel green)
ERR 1 LED red)
I/O 1 LED red)
net weight
0,15 kg
Environment
IP degree of protection
IP20
directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
product certifications
EAC
ATEX
CSA
UL
CE
RCM
Merchant Navy
IEC-Ex
dielectric strength
2000 V AC 50/60 Hz 1 min
vibration resistance
3 gn
shock resistance
30 gn
ambient air temperature for storage
-40…85 °C
ambient air temperature for operation
-25…70 °C
relative humidity
5…95 % 55 °C without condensation
protective treatment
Conformal coating
environmental characteristic
Gas resistant class Gx
Gas resistant class 3C4
Dust resistant class 3S4
Sand resistant class 3S4
Salt resistant level 2
Mold growth resistant class 3B2
Fungal spore resistant class 3B2
operating altitude
0...2000 m
2000...5000 m with derating factor
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
