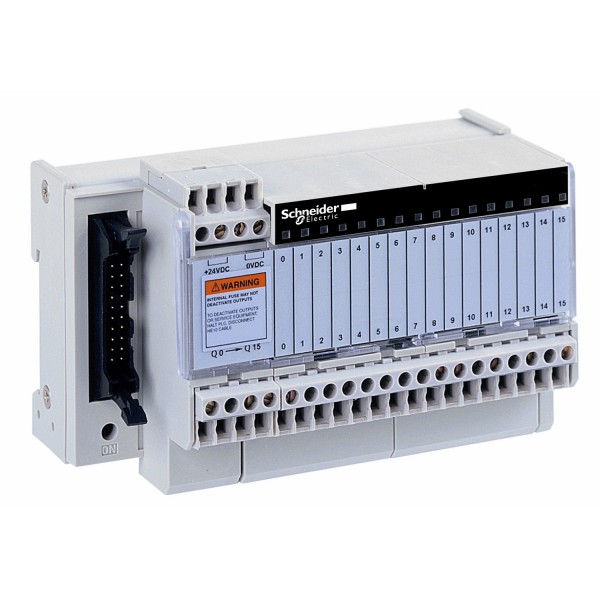

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm - Kontrollerid - Tööstusautomaatika

Details

Main
range of product	Modicon ABE7
product or component type	Electromechanical output relay sub-base
[Us] rated supply voltage	24 V DC PLC end
number of channels	16
connections - terminals	Spring terminal, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Spring terminal, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Spring terminal, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end

Complementary
terminal block type	Removable
supply voltage limits	30 V DC PLC end)
polarity distribution	Polarity distribution contact common per group of 8 channels
protection type	Internal fuse 1 A 5 x 20 mm fast blow PLC end Adjustable by external fuse high breaking capacity preactuator end
fixing mode	By clips 35 mm symmetrical DIN rail) By screws solid plate with fixing kit)
width	125 mm
maximum current per output common	12 A
current per channel	2 A preactuator end
minimum switching current	1 mA >= 5 V
drop-out voltage	2,4 V 20 °C PLC end)
switching frequency	<= 10 Hz <= 0.5 Hz
threshold tripping voltage	19.2 V 40 °C
drop-out current	0,5 mA 20 °C
maximum power dissipation per channel in W	0,22 W PLC end)
contacts type and composition	1 NO preactuator end
maximum switching voltage	250 V AC 50/60 Hz IEC 60947-5-1 30 V DC IEC 60947-5-1
number of channel per common	8
electrical durability	500000 cycles 200 mA 24 V DC-13 10 ms preactuator end) 500000 cycles 400 mA 230 V AC-15 preactuator end) 500000 cycles 600 mA 230 V AC-12 preactuator end) 500000 cycles 600 mA 24 V DC-12 preactuator end)
electrical reliability	1e-008
operating time	<= 10 ms coil energisation and NO closing <= 6 ms coil de-energisation and NO opening
contact bounce time	<= 5 ms 1 NO
operating rate in Hz	10 Hz no load 0,5 Hz at Ie
mechanical durability	20000000 cycles
[Uimp] rated impulse withstand voltage	2,5 kV IEC 60947-1
[Ui] rated insulation voltage	2000 V
installation category	II IEC 60664-1
tightening torque	0,6 N.m flat Ø 3.5 mm
net weight	0,405 kg

Environment
max immunity to microbreaks	5 ms
dielectric strength	2000 V IEC 60947-1
IP degree of protection	IP2x IEC 60529
resistance to incandescent wire	750 °C 30 s IEC 60695-2-11
vibration resistance	2 gn 10…150 Hz)IEC 60068-2-6
resistance to electrostatic discharge	4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2
resistance to radiated fields	10 V/m 26000000…1000000000 Hz)IEC 61000-4-3 level 3
resistance to fast transients	2 kV level 3 IEC 61000-4-4
ambient air temperature for operation	-5…60 °C IEC 61131-2
ambient air temperature for storage	-40…80 °C IEC 61131-2
pollution degree	2 IEC 60664-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
