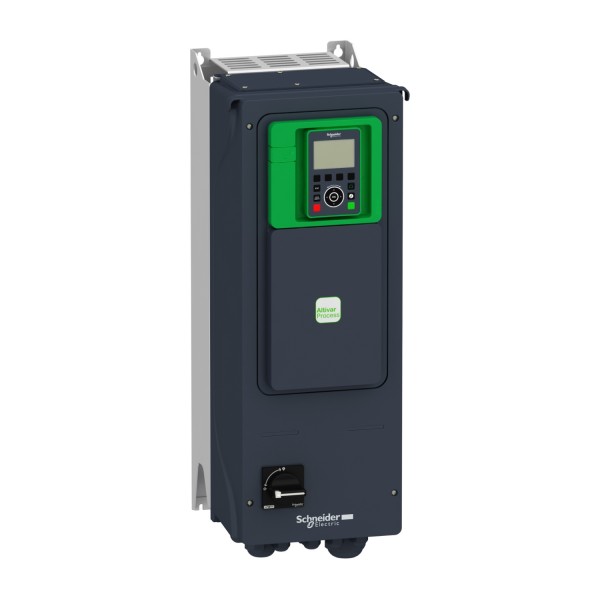

variable speed drive ATV650 - 3kW - 380...480V - IP55 - disconnect switch - Sagedusmuundurid - Tööstusautomaatika

Details

Main
range of product	Altivar Process ATV600
product or component type	Variable speed drive
product specific application	Process and utilities
device short name	ATV650
variant	With disconnect switch
product destination	Asynchronous motors Synchronous motors
EMC filter	Integrated 50 m EN/IEC 61800-3 category C2 Integrated 150 m EN/IEC 61800-3 category C3
IP degree of protection	IP55IEC 61800-5-1 IP55IEC 60529
type of cooling	Forced convection
supply frequency	50...60 Hz - 5...5 %
network number of phases	3 phases
[Us] rated supply voltage	380...480 V - 15...10 %
motor power kW	3 kW normal duty) 2,2 kW heavy duty)
motor power hp	3 hp heavy duty 4 hp normal duty
line current	5,8 A 380 V normal duty) 5,1 A 480 V normal duty) 4,5 A 380 V heavy duty) 4 A 480 V heavy duty)
prospective line Isc	50 kA
apparent power	4,2 kVA 480 V normal duty) 3,3 kVA 480 V heavy duty)
continuous output current	7,2 A 4 kHz normal duty 5,6 A 4 kHz heavy duty
maximum transient current	8,4 A 60 s heavy duty) 7,9 A 60 s normal duty)
asynchronous motor control profile	Variable torque standard Optimized torque mode Constant torque standard
synchronous motor control profile	Permanent magnet motor Synchronous reluctance motor
output frequency	0,0001…0,5 kHz
speed drive output frequency	0,1…599 Hz
nominal switching frequency	4 kHz
switching frequency	2...12 kHz adjustable 4...12 kHz with derating factor
safety function	STO (safe torque off) SIL 3
discrete input logic	16 preset speeds
communication port protocol	Modbus serial Modbus TCP Ethernet
option card	Slot A communication module, Profibus DP V1 Slot A communication module, Profinet Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink

Complementary
output voltage	<= power supply voltage
permissible temporary current boost	1.1 x In 60 s normal duty) 1.5 x In 60 s heavy duty)
motor slip compensation	Automatic whatever the load Adjustable Not available in permanent magnet motor law Can be suppressed
acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s
braking to standstill	By DC injection
protection type	Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive Short-circuit protection drive Motor phase break drive Overvoltages on the DC bus drive Line supply overvoltage drive Line supply undervoltage drive Line supply phase loss drive Overspeed drive Break on the control circuit drive
frequency resolution	Display unit 0.1 Hz Analog input 0.012/50 Hz
electrical connection	Control removable screw terminals 0.5...1.5 mm² Line side screw terminal 4...6 mm² Motor screw terminal 4...6 mm²
connector type	RJ45 on the remote graphic terminal)Ethernet/Modbus TCP RJ45 on the remote graphic terminal)Modbus serial
physical interface	2-wire RS 485 Modbus serial
transmission frame	RTU Modbus serial
transmission rate	10/100 Mbit/s Ethernet IP/Modbus TCP 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
exchange mode	Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
data format	8 bits, configurable odd, even or no parity Modbus serial
type of polarization	No impedance Modbus serial
number of addresses	1…247 Modbus serial
method of access	Slave Modbus TCP
supply	External supply for digital inputs 24 V DC 19…30 V), <1,25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
local signalling	Local diagnostic 3 LEDs Embedded communication status 3 LEDs dual colour) Communication module status 4 LEDs dual colour) Presence of voltage 1 LED red)
width	264 mm
height	678 mm
depth	300 mm
net weight	10,6 kg
analogue input number	3
analogue input type	AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
discrete input number	8
discrete input type	DI1...DI6 programmable, 24 V DC <= 30 V)3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
input compatibility	DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 DI5, DI6 discrete input level 1 PLC IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
discrete input logic	Positive logic (source) DI1...DI6), < 5 V, > 11 V Negative logic (sink) DI1...DI6), > 16 V, < 10 V Positive logic (source) DI5, DI6), < 0.6 V, > 2.5 V Positive logic (source) STOA, STOB), < 5 V, > 11 V
analogue output number	2
analogue output type	Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bits Software-configurable current AO1, AO2 0...20 mA 10 bits
sampling duration	2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output
accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
linearity error	AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2 +/- 0.2 % analog output
relay output number	3
relay output type	Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles
refresh time	Relay output R1, R2, R3)5 ms +/- 0.5 ms)
minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 30 V DC
isolation	Between power and control terminals
mounting mode	Wall mount

Environment
insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
noise level	52 dB 86/188/EEC
operating position	Vertical +/- 10 degree
maximum THDI	<48 % full load IEC 61000-3-12
electromagnetic compatibility	Electrostatic discharge immunity test level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 Conducted radio-frequency immunity test level 3 IEC 61000-4-6
pollution degree	2 EN/IEC 61800-5-1
vibration resistance	1.5 mm peak to peak 2…13 Hz)IEC 60068-2-6 1 gn 13…200 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms IEC 60068-2-27
relative humidity	5…95 % without condensation IEC 60068-2-3
ambient air temperature for operation	-15…40 °C without) 40…50 °C with derating factor)
ambient air temperature for storage	-40…70 °C
operating altitude	<= 1000 m without 1000...4800 m with current derating 1 % per 100 m
environmental characteristic	Chemical pollution resistance class 3C3 EN/IEC 60721-3-3 Dust pollution resistance class 3S3 EN/IEC 60721-3-3
standards	EN/IEC 61800-3 Environment 1 category C2 EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
product certifications	ATEX zone 2/22 TÜV ATEX INERIS UL DNV-GL CSA REACH
marking	CE

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
